Описание на продукта
Детайли

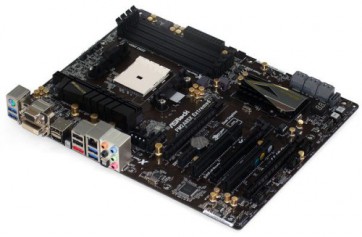

ASROCK Extreme6, A85X, FM2
Характеристики
Характеристики
| Чипсет | AMD A85X (Hudson-D4) |
|---|---|
| Съвместими процесори | Support for Socket FM2 100W processors, Digi Power Design, 8 + 2 Power Phase Design, Supports AMD's Cool 'n' Quiet Technology, UMI-Link GEN2 |
| Памет | Dual Channel DDR3 memory technology; 4 x DDR3 DIMM slots; Supports DDR3 2600+(OC)/2400(OC)/2133(OC)/1866/1600/1333/1066 non-ECC, un-buffered memory; Max. capacity of system memory: 64GB*; Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 |
| Портове | 1 x PS/2 Mouse/Keyboard Port; 1 x D-Sub Port; 1 x DVI-D Port; 1 x HDMI Port; 1 x DisplayPort; 1 x Optical SPDIF Out Port; 2 x Ready-to-Use USB 2.0 Ports; 1 x eSATA3 Connector; 4 x Ready-to-Use USB 3.0 Ports |
| Слотове | 3 x PCI Express 2.0 x16 slots (PCIE2/PCIE4: single at x16 (PCIE2) / x8 (PCIE4), or dual at x8 (PCIE2) / x8 (PCIE4) ; PCIE5: x4 mode); 2 x PCI Express 2.0 x1 slots; 2 x PCI slots; Supports AMD Quad CrossFireX, 3-Way CrossFireX, CrossFireX and Dual Graphics |
| Видео | Integrated AMD Radeon HD 7000 series graphics in A-series APU, DirectX 11, Pixel Shader 5.0, Max. shared memory 2GB, Multi VGA Output options: D-Sub, DVI-D, HDMI and DisplayPort, Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz |
| Аудио | 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec); Premium Blu-ray audio support; Supports THX TruStudio |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s; Realtek RTL8111E; Supports Wake-On-LAN; Supports LAN Cable Detection; Supports Energy Efficient Ethernet 802.3az; Supports PXE |
| BIOS | 64Mb AMI UEFI Legal BIOS with GUI support, Supports "Plug and Play", ACPI 1.1 Compliance Wake Up Event, Supports jumperfree, SMBIOS 2.3.1 Support, DRAM, APU PCIE VDDP, CPU and CPU NB/GFX Voltage Multi-adjustment |
| Форм фактор | ATX |
| Гаранционен срок | 24 месеца |
