Описание на продукта
Детайли

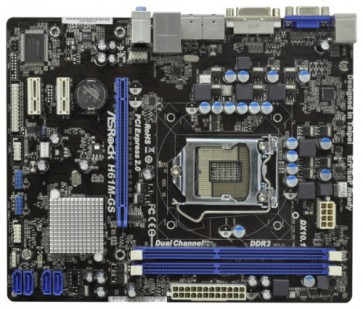

ASROCK H61M-GS H61 LGA1155
Характеристики
Характеристики
| Чипсет | Intel H61 |
|---|---|
| Съвместими процесори | Supports 2nd Generation Intel Core i7 / i5 / i3 in LGA1155 Package; Supports Intel Turbo Boost 2.0 Technology; Supports Intel K-Series CPU; Supports Hyper-Threading Technology |
| Памет | Dual Channel DDR3 memory technology; 2 x DDR3 DIMM slots; Supports DDR3 1333/1066 non-ECC, un-buffered memory; Max. capacity of system memory: 16GB |
| Портове | 1 x PS/2 Mouse Port; 1 x PS/2 Keyboard Port; 1 x VGA/D-Sub Port; 1 x VGA/DVI-D Port; 6 x Ready-to-Use USB 2.0 Ports; 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jack: Line in / Front Speaker / Microphone |
| Слотове | 1 x PCI Express 2.0 x16 slot (blue @ x16 mode); 2 x PCI Express 2.0 x1 slots |
| Видео | Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video, Intel Clear Video HD Technology, Intel HD Graphics 2000/3000, Intel Advanced Vector Extensions (AVX); Pixel Shader 4.1, DirectX 10.1; Max. shared memory 1759MB; Dual VGA Output: support |
| Аудио | 5.1 CH HD Audio (Realtek ALC662 Audio Codec) |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s; Atheros AR8151; Supports Wake-On-LAN |
| BIOS | 32Mb AMI UEFI Legal BIOS with GUI support; Supports "Plug and Play"; ACPI 1.1 Compliance Wake Up Events; Supports jumperfree; SMBIOS 2.3.1 Support; IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment |
| Форм фактор | Micro ATX |
| Други | Dimensions 24.4 cm x 19.8 cm |
| Гаранционен срок | 24 месеца |
