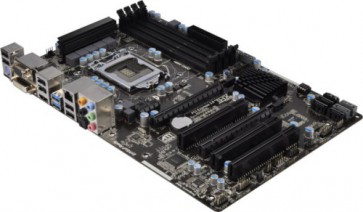

ASROCK H77 PRO4 MVP H77 1155
Характеристики
Характеристики
| Чипсет | Intel H77; Supports Intel Rapid Start Technology and Smart Connect Technology |
|---|---|
| Съвместими процесори | Supports 3rd and 2nd Generation Intel Core i7 / i5 / i3 in LGA1155 Package; Digi Power Design; 4 + 2 Power Phase Design; Supports Intel Turbo Boost 2.0 Technology; Supports Intel K-Series unlocked CPU; Supports Hyper-Threading Technology |
| Памет | Dual Channel DDR3 memory technology; 4 x DDR3 DIMM slots; Supports DDR3 1600/1333/1066 non-ECC, un-buffered memory; Max. capacity of system memory: 32GB; Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2 |
| Портове | 1 x PS/2 Keyboard Port; 1 x D-Sub Port; 1 x DVI-D Port; 1 x HDMI Port; 1 x Optical SPDIF Out Port; 6 x Ready-to-Use USB 2.0 Ports; 2 x Ready-to-Use USB 3.0 Ports; 1 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED); HD Audio Jack: Rear Speaker / Cen |
| Слотове | 1 x PCI Express 3.0 x16 slot (PCIE2: x16 mode); 1 x PCI Express 2.0 x16 slot (PCIE3: x4 mode); 1 x PCI Express 2.0 x1 slot; 3 x PCI slots; Supports AMD Quad CrossFireX and CrossFireX |
| Видео | Supports Intel HD Graphics Built-in Visuals : Intel Quick Sync Video 2.0; Intel InTru 3D; Intel Clear Video HD Technology; Intel Insider; Intel HD Graphics 2500/4000; Pixel Shader 5.0; DirectX 11 with Intel Ivy Bridge CPU. Pixel Shader 4.1 |
| Аудио | 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec); Premium Blu-ray audio support; Supports THX TruStudio |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s; Realtek RTL8111E; Supports Wake-On-LAN; Supports LAN Cable Detection; Supports Energy Efficient Ethernet 802.3az; supports PXE |
| BIOS | 64Mb AMI UEFI Legal BIOS with GUI support; Supports "Plug and Play"; ACPI 1.1 Compliance Wake Up Events; Supports jumperfree; SMBIOS 2.3.1 Support; CPU Core; IGPU; DRAM; 1.8V PLL; VTT; VCCSA Voltage Multi-adjustment |
| Форм фактор | ATX |
| Други | Dimensions 30.5 cm x 20.1 cm |
| Гаранционен срок | 36 месеца |
