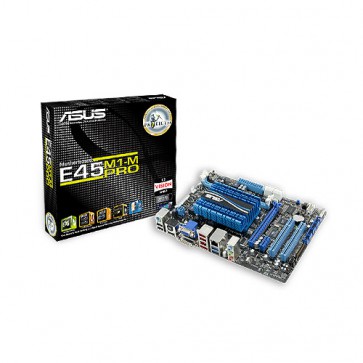

ASUS E45M1-M PRO W/APU E-450
Характеристики
Характеристики
| Чипсет | AMD FCH A50M (Hudson M1) |
|---|---|
| Съвместими процесори | AMD Fusion APU E-450 Dual-Core onboard Processors; Supports AMD Turbo Core Technology |
| Памет | 2 x DIMM, Max. 8GB, DDR3 1600(O.C.)/1333/1066 MHz Non-ECC, Un-buffered Memory; Single Channel Memory Architecture |
| Портове | 1 x PS/2 keyboard/mouse combo port(s); 1 x DVI; 1 x D-Sub; 1 x HDMI; 1 x eSATA 6Gb/s; 1 x IEEE 1394a; 1 x LAN (RJ45) port(s); 2 x USB 3.0; 4 x USB 2.0; 1 x Optical S/PDIF out; 3 x Audio jack(s); |
| Слотове | 1 x PCIe 2.0 x16 (x4 mode); 1 x PCIe 2.0 x1; 2 x PCI |
| Дисков интерфейс | Built-in Controller : 5 x SATA 6Gb/s port(s), white; 1 x eSATA 6Gb/s port(s), red |
| Видео | Integrated ATI Radeon HD 6320 GPU; Multi-VGA output support : HDMI/DVI/RGB ports; - Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz; - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz; - Supports RGB with max. resolution 2560 x 1600 @ 60 Hz; S |
| Аудио | Realtek ALC887 8-Channel High Definition Audio CODEC; Supports : Multi-streaming, Front Panel Jack-retasking, Anti-pop Function; Audio Feature : Optical S/PDIF out port(s) at back panel |
| LAN | Realtek 8111E , 1 x Gigabit LAN Controller(s) |
| BIOS | 32 Mb Flash ROM, UEFI BIOS, PnP, DMI 2.0, WfM 2.0, ACPI 2.0a, SM BIOS 2.6 |
| Форм фактор | microATX |
| Други | Dimensions 24.4 cm x 18.3 cm |
| Гаранционен срок | 36 месеца |
