Описание на продукта
Детайли

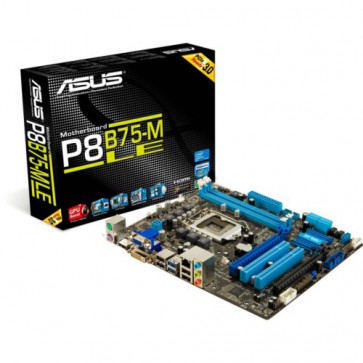

ASUS P8B75-M LE B75 LGA1155
Характеристики
Характеристики
| Чипсет | Intel B75 |
|---|---|
| Съвместими процесори | Intel Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors ; Supports Intel 22 nm CPU; Supports Intel 32 nm CPU; Supports Intel Turbo Boost Technology 2.0 |
| Памет | 2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2000(O.C.)/1800(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture |
| Портове | 1 x PS/2 keyboard (purple); 1 x PS/2 mouse (green); 1 x DVI-D; 1 x D-Sub; 1 x HDMI; 1 x LAN (RJ45) port(s); 2 x USB 3.0; 4 x USB 2.0; 3 x Audio jack(s) |
| Слотове | 1 x PCIe 3.0/2.0 x16; 1 x PCIe 2.0 x16 (x4 mode); 2 x PCI |
| Дисков интерфейс | Intel B75 chipset : 5 x SATA 3Gb/s port(s), blue 1 x SATA 6Gb/s port(s), gray |
| Видео | Multi-VGA output support : HDMI/DVI/RGB ports - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz; - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz; - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz; Maximum shared memory of 1024 MB |
| Аудио | VIA VT1708S 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, Anti-pop Function |
| LAN | Realtek 8111F-VB-CG, 1 x Gigabit LAN Controller(s) |
| BIOS | 128 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3 |
| Форм фактор | microATX |
| Други | Dimensions 24.4 cm x 20.3 cm |
| Гаранционен срок | 36 месеца |
