Описание на продукта
Детайли

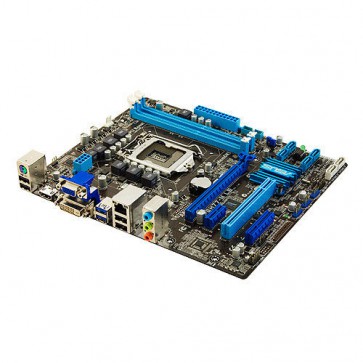

ASUS P8H77-M LE H77 1155
Характеристики
Характеристики
| Чипсет | Intel H77 |
|---|---|
| Съвместими процесори | Intel Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors; Supports Intel 22 nm CPU; Supports Intel 32 nm CPU; Supports Intel Turbo Boost Technology 2.0 |
| Памет | 2 x DIMM, Max. 16GB, DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Memory; Dual Channel Memory Architecture |
| Портове | 1 x PS/2 keyboard/mouse combo port(s); 1 x DVI; 1 x D-Sub; 1 x HDMI; 1 x LAN (RJ45) port(s); 2 x USB 3.0 ; 4 x USB 2.0; 3 x Audio jack(s) |
| Слотове | 1 x PCIe 3.0/2.0 x16; 1 x PCIe 2.0 x4 ; 1 x PCIe 2.0 x1 ; 1 x PCI; Supports LucidLogix Virtu MVP Technology |
| Дисков интерфейс | Intel H77 chipset : 2 x SATA 6Gb/s port(s), gray; 4 x SATA 3Gb/s port(s), blue; Support Raid 0, 1, 5, 10; Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology |
| Видео | Multi-VGA output support : HDMI/DVI/RGB ports; - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz; - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz; - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz |
| Аудио | Realtek ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking |
| LAN | Realtek 8111F, 1 x Gigabit LAN Controller(s) |
| BIOS | 64Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2.0a |
| Форм фактор | micro ATX |
| Други | Dimensions 24.4 cm x 20.8 cm |
| Гаранционен срок | 36 месеца |
