Описание на продукта
Детайли

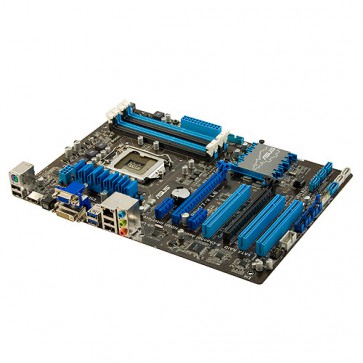

ASUS P8H77-V LE H77
Характеристики
Характеристики
| Чипсет | Intel H77 |
|---|---|
| Съвместими процесори | Intel Socket 1155 for 3rd/2nd Generation Processors; Supports Intel 22 nm CPU; Supports Intel 32 nm CPU; Supports Intel Turbo Boost Technology 2.0 |
| Памет | 4 x DIMM, Max. 32GB, DDR3 MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP) |
| Портове | 1 x PS/2 keyboard/mouse combo port(s); 1 x DVI-D; 1 x D-Sub; 1 x HDMI; 1 x LAN (RJ45) port(s); 2 x USB 3.0; 4 x USB 2.0; 1 x Optical S/PDIF out; 3 x Audio jack(s) |
| Слотове | 1 x PCIe 3.0/2.0 x16 (blue); 1 x PCIe 2.0 x16 (x4 mode, black); 1 x PCIe 2.0 x1; 3 x PCI; Supports AMD Quad-GPU CrossFireX Technology; Supports LucidLogix Virtu MVP Technology |
| Дисков интерфейс | Intel H77 chipset : 2 x SATA 6Gb/s port(s), gray; 4 x SATA 3Gb/s port(s), blue; Support Raid 0, 1, 5, 10; Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology |
| Видео | Multi-VGA output support : HDMI/DVI/RGB ports; - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz; - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz; - Supports RGB with max. resolution 2048 x 1536 @ 75 Hz; Maximum shared memory of 1696 MB |
| Аудио | Realtek ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; Audio Feature :- Optical S/PDIF out port(s) at back panel |
| LAN | Realtek 8111F, 1 x Gigabit LAN Controller(s) |
| BIOS | 64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 4.0, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3 |
| Форм фактор | microATX |
| Други | Dimensions 30.5 cm x 21.8 cm |
| Гаранционен срок | 36 месеца |
