Описание на продукта
Детайли

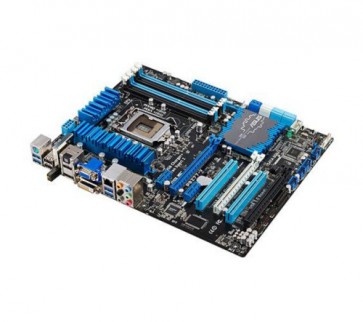

ASUS P8Z77-V LE PLUS Z77 1155
Характеристики
Характеристики
| Чипсет | Intel Z77 |
|---|---|
| Съвместими процесори | Intel Socket 1155 for 3rd/2nd Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 22 nm CPU; Supports Intel 32 nm CPU; Supports Intel Turbo Boost Technology 2.0 |
| Памет | 4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel Extreme Memory Profile (XMP) |
| Портове | 1 x PS/2 keyboard/mouse combo port(s); 1 x DVI; 1 x D-Sub; 1 x DisplayPort; 1 x HDMI; 1 x LAN (RJ45) port(s); 4 x USB 3.0; 2 x USB 2.0; 1 x Optical S/PDIF out; 6 x Audio jack(s) |
| Слотове | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8, blue); 1 x PCIe 2.0 x16 (x4 mode, black); 2 x PCIe 2.0 x1; 2 x PCI; Supports NVIDIA Quad-GPU SLI Technology; Supports AMD Quad-GPU CrossFireX Technology; Supports AMD 3-Way CrossFireX Technology |
| Дисков интерфейс | Intel Z77 chipset : 2 x SATA 6Gb/s port(s), gray; 4 x SATA 3Gb/s port(s), blue; Support Raid 0, 1, 5, 10; Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology ; Marvell PCIe SATA 6Gb/s controller |
| Видео | Multi-VGA output support : HDMI/DVI/RGB/DisplayPort ports; Maximum shared memory of 1696 MB; Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
| Аудио | Realtek ALC889 8-Channel High Definition Audio CODEC; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking; Audio Feature : - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound; - Blu-ray audio layer Content Protection |
| LAN | Realtek 8111F, 1 x Gigabit LAN Controller(s) |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Форм фактор | ATX |
| Други | Dimensions 30.5 cm x 24.4 cm |
| Гаранционен срок | 36 месеца |
