| Part # |

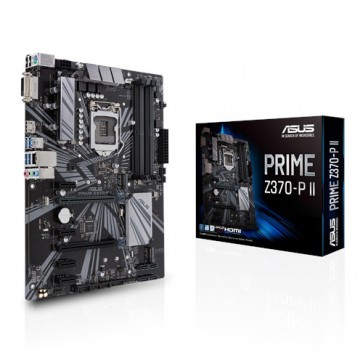

PRIME Z370-P II |
| Чипсет |
Intel® Z370 |
| Съвместими процесори |
Intel® Socket 1151 for 8th Generation Core™ Processors; Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 2.0 |
| Памет |
4 x DIMM, Max. 64GB, DDR4 4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory * Dual Channel Memory Architecture; Supports Intel® Extreme M |
| Портове |
1 x PS/2 keyboard/mouse combo port(s); 1 x DVI-D; 1 x HDMI; 1 x LAN (RJ45) port(s); 4 x USB 3.1 Gen 1 (blue) Type-A,; 2 x USB 2.0; 3 x Audio jack(s) |
| Слотове |
1 x PCIe 3.0/2.0 x16 (x16, x8/x4+x4) *; 1 x PCIe 3.0/2.0 x16 (max at x4 mode); 4 x PCIe 3.0/2.0 x1 |
| Конектори |
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode); 1 x COM port(s) connector(s); 4 x SATA 6Gb/s connector(s); 1 x CPU Fan connector(s) (1 x 4 -pin); 2 x Chassis Fan connector(s) (2 x 4 -pin); 1 x S/PDIF out header(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin ATX 12V Power connector(s); 1 x Front panel audio connector(s) (AAFP); 1 x Clear CMOS jumper(s); 1 x System panel connector; 1 x AIO PUMP Header |
| Дисков интерфейс |
Intel® Z370 Chipset : 2 x M.2 Socket 3*1, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode); 4 x SATA 6Gb/s port(s), gray; Support Raid 0, 1, 5, 10; Intel® Optane™ Memory Ready; Intel® CPU with Intel® Rapid Storage Techn |
| Видео |
Integrated Graphics Processor- Intel® HD Graphics support; Multi-VGA output support : HDMI/DVI-D ports; - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz; - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz; Maximum shared memory of 1024 MB ( |
| Аудио |
Realtek® ALC887 8-Channel High Definition Audio CODEC; - Supports : Jack-detection, Front Panel Jack-retasking; Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.; - Audio Shielding: Ensures p |
| LAN |
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s); ASUS LAN Guard |
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.1, WfM2.0, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Pres |
| Форм фактор |
ATX |
| Други |
Socket: LGA1151; OS: Windows® 10 64-bit |
| Гаранционен срок |
36 месеца |
