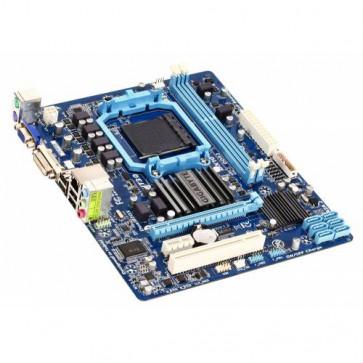

Gigabyte 78LMT-S2P AMD 760G AM3
Характеристики
Характеристики
| Чипсет | North Bridge: AMD 760G; South Bridge: AMD SB710 |
|---|---|
| Съвместими процесори | AM3+ Socket: Support for AMD AM3+ processor; Support for AMD AM3 Phenom II processor AMD Athlon II processor |
| Памет | 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory; Dual channel memory architecture; Support for DDR3 1333+ (O.C.)/1066/800 MHz memory modules |
| Портове | 1 x PS/2 keyboard port; 1 x PS/2 mouse port; 1 x D-Sub port; 1 x DVI-D port; ; x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks (Line In/Line Out/Microphone) |
| Слотове | 1 x PCI Express x16 slot, running at x16; 1 x PCI Express x1 slot(All PCI Express slots conform to PCI Express 2.0 standard.); 1 x PCI slot |
| Дисков интерфейс | South Bridge: 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices; Support for SATA RAID 0, RAID 1, RAID 10, and JBOD |
| Видео | Integrated ATI Radeon HD 3000 graphics (DirectX10); North Bridge:1 x D-Sub port; 1 x DVI-D port, supporting a maximum resolution of 1920x1200 |
| Аудио | Realtek ALC889 codec; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | 1 x Realtek 8111E chip (10/100/1000 Mbit) |
| BIOS | 2 x 16 Mbit flash; Use of licensed AWARD BIOS; Support for DualBIOS; PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b |
| Форм фактор | Micro ATX |
| Други | Dimensions 24.4cm x 20.6cm |
| Гаранционен срок | 36 месеца |
