Описание на продукта
Детайли

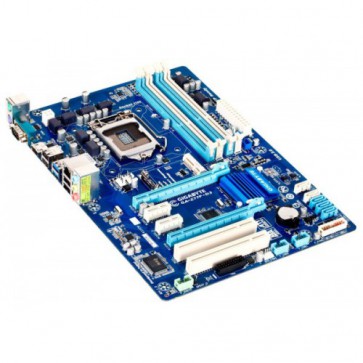

Gigabyte H77-DS3H H77 LGA1155
Характеристики
Характеристики
| Чипсет | Intel H77 Express Chipset |
|---|---|
| Съвместими процесори | Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1155 package |
| Памет | 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory; Dual channel memory architecture; Support for DDR3 1600/1333/1066 MHz memory modules; Support for non-ECC memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Multi-GPU Support | Support for AMD CrossFireX technology |
| Портове | 1 x PS/2 keyboard/mouse port; ; x D-Sub port; 1 x DVI-D port; 1 x HDMI port; 4 x USB 2.0/1.1 ports; 2 x USB 3.0/2.0 ports; 1 x RJ-45 port; 3 x audio jacks (Line In/Line Out/Microphone) |
| Слотове | 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices; 3 x SATA 3Gb/s connectors (SATA2 2/3/4) supporting up to 3 SATA 3Gb/s devices; 1 x mSATA connector; Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| Дисков интерфейс | 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices; 3 x SATA 3Gb/s connectors (SATA2 2/3/4) supporting up to 3 SATA 3Gb/s devices; 1 x mSATA connector; Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| Видео | 1 x D-Sub port; 1 x DVI-D port, supporting a maximum resolution of 1920x1200; 1 x HDMI port, supporting a maximum resolution of 1920x1200 |
| Аудио | Realtek ALC887 codec; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out |
| LAN | Atheros GbE LAN chip (10/100/1000 Mbit) |
| BIOS | 2 x 64 Mbit flash; Use of licensed AMI EFI BIOS; Support for DualBIOS; PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a |
| Форм фактор | ATX |
| Други | Dimensions 30.5cm x 21.5cm |
| Гаранционен срок | 36 месеца |
