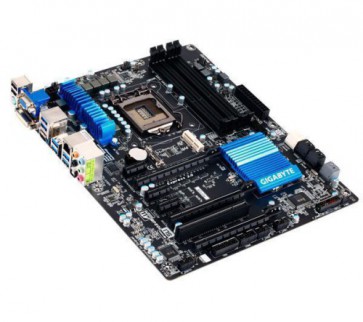

Gigabyte Z77X-UD3H Z77 LGA1155
Характеристики
Характеристики
| Чипсет | Intel Z77 Express Chipset |
|---|---|
| Съвместими процесори | Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentiummprocessors/Intel Celeron processors in the LGA1155 package |
| Памет | 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory; Dual channel memory architecture; Support for DDR3 2666(OC)/1600/1333/1066 MHz memory modules; Support for non-ECC memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Портове | 1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 1 x DVI-D port; 1 x optical S/PDIF Out connector; 1 x HDMI port; 1 x DisplayPort; 2 x eSATA 6Gb/s connectors; 6 x USB 3.0/2.0 ports; 1 x RJ-45 port; 6 x audio jacks |
| Слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16); 1 x PCI Express x16 slot, running at x8 (PCIEX8) (The PCIEX16 and PCIEX8 slots conform to PCI Express 3.0 standard.); 1 x PCI Express x16 slot, running at x4 (PCIEX4); 3 x PCI Express |
| Дисков интерфейс | 2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices, 4 x SATA 3Gb/s connectors (SATA2 2~5) supporting up to 4 SATA 3Gb/s devices, 1 x mSATA connector, Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| Видео | 1 x D-Sub port, 1 x DVI-D port, supporting a maximum resolution of 1920x1200, 1 x HDMI port, supporting a maximum resolution of 1920x1200, 1 x DisplayPort, supporting a maximum resolution of 2560x1600 |
| Аудио | VIA VT2021 codec; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out |
| LAN | Atheros GbE LAN chip (10/100/1000 Mbit) |
| BIOS | 2 x 64 Mbit flash, Use of licensed AMI EFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a |
| Форм фактор | ATX |
| Други | Dimensions 30.5cm x 24.4cm |
| Гаранционен срок | 36 месеца |
