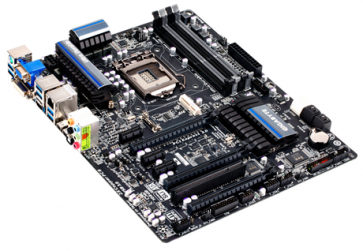

Gigabyte Z77X-UP4 TH Z77 1155
Характеристики
Характеристики
| Чипсет | Intel Z77 Express Chipset |
|---|---|
| Съвместими процесори | Support for Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1155 package |
| Памет | 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory; Dual channel memory architecture; Support for DDR3 1600/1333/1066 MHz memory modules; Support for non-ECC memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Портове | 1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 1 x DVI-D port; 1 x HDMI port; 6 x USB 3.0/2.0 ports; 2 x Thunderbolt ports; 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out |
| Слотове | 1 x PCI Express x16 slot, running at x16 (PCIEX16); 1 x PCI Express x16 slot, running at x8 (PCIEX8); 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIEX16, PCIEX8 and PCIEX4 slots conform to PCI Express 3.0 standard.); 3 x PCI Express x1 slots; 1 |
| Дисков интерфейс | Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1); 4 x SATA 3Gb/s connectors (SATA2 2~SATA2 5); 1 x mSATA connector; Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| Видео | 1 x D-Sub port; 1 x DVI-D port, supporting a maximum resolution of 1920x1200;1 x HDMI port, supporting a maximum resolution of 1920x1200 |
| Аудио | Realtek ALC892 codec; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out; Support for S/PDIF In |
| LAN | 1 x Realtek GbE LAN chip (10/100/1000 Mbit) |
| BIOS | 2 x 64 Mbit flash; Use of licensed AMI EFI BIOS; Support for DualBIOS; PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a |
| Форм фактор | ATX |
| Други | Dimensions 30.5cm x 24.4cm |
| Гаранционен срок | 36 месеца |
